#include <CallRecord.h>

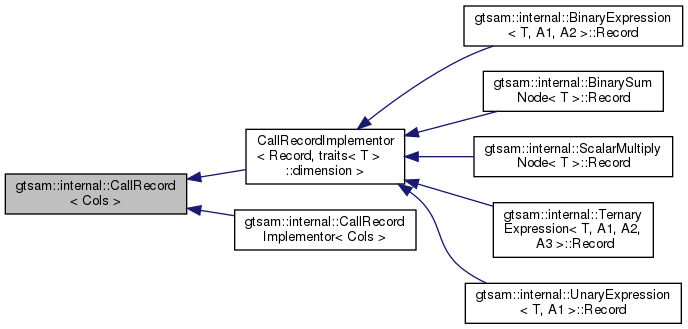

Inheritance diagram for gtsam::internal::CallRecord< Cols >:
Public Member Functions | |
| void | print (const std::string &indent) const |
| void | startReverseAD2 (JacobianMap &jacobians) const |
| template<typename Derived > | |
| void | reverseAD2 (const Eigen::MatrixBase< Derived > &dFdT, JacobianMap &jacobians) const |
| void | reverseAD2 (const Matrix &dFdT, JacobianMap &jacobians) const |
Detailed Description
template<int Cols>
struct gtsam::internal::CallRecord< Cols >
The CallRecord is an abstract base class for any class that stores the Jacobians of applying a function with respect to each of its arguments, as well as an execution trace for each of its arguments.
The complicated structure of this class is to get around the limitations of mixing inheritance (needed so that a trace can keep Record pointers) and templating (needed for efficient matrix multiplication). The "hack" is to implement N differently sized reverse AD methods, and select the appropriate version with the dispatch method reverseAD2 below.
The documentation for this struct was generated from the following file:
- /home/docs/checkouts/readthedocs.org/user_builds/gtsam-jlblanco-docs/checkouts/latest/gtsam/nonlinear/internal/CallRecord.h
